SAKO 24V 48V DC 5000W Hybrid Solar Inverter with MPPT controller solar inverter

  • 5 - 49 Packs
    $416.00
  • 50 - 499 Packs
    $390.00
  • >=500 Packs
    $300.00
Application:
Off-Grid Solar System Hybrid Solar System
Output Power:
4000W
Lead Time:
Quantity(Packs) 1 - 1000 >1000
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SAKO
Model Number:
SUNSEE 5KVA 4000W48V
Output Type:
Single, Multiple
Input Voltage:
230VAC
Type:
DC/AC Inverters
Output Frequency:
50HZ60HZ
Output Current:
80A
Size:
549X384X224MM
Weight:
11KG
Product name:
Hybrid Solar Inverter
Application:
Solar Power System Home
Certificate:
ISO 9001/CE/IEC/TUV
Display:
LCD Display
Rated Power:
4000w
Warranty:
3 Years
Feature:
Solar Inverter 5Kva
Packaging & Delivery
Lead Time :
Quantity(Packs) 1 - 1000 >1000
Est. Time(days) 5 To be negotiated
Video Description

SAKO 24V 48V DC 5000W Hybrid Solar Inverter with MPPT controller solar inverter

MAIN FEATURES

1. Real MPPT charge controller built inside,15%-20% higher than PWM charge controller, use solar utmost. 2. Pure sine wave, high frequency technology,wall amounted design,light weighted and easy to operate

3. Selectable input voltage range for home appliances and personal computers
4. Selectable charging current based on applications
5. Configurable AC/Solar input priority via LCD setting
6. Compitable to grid power or generator power

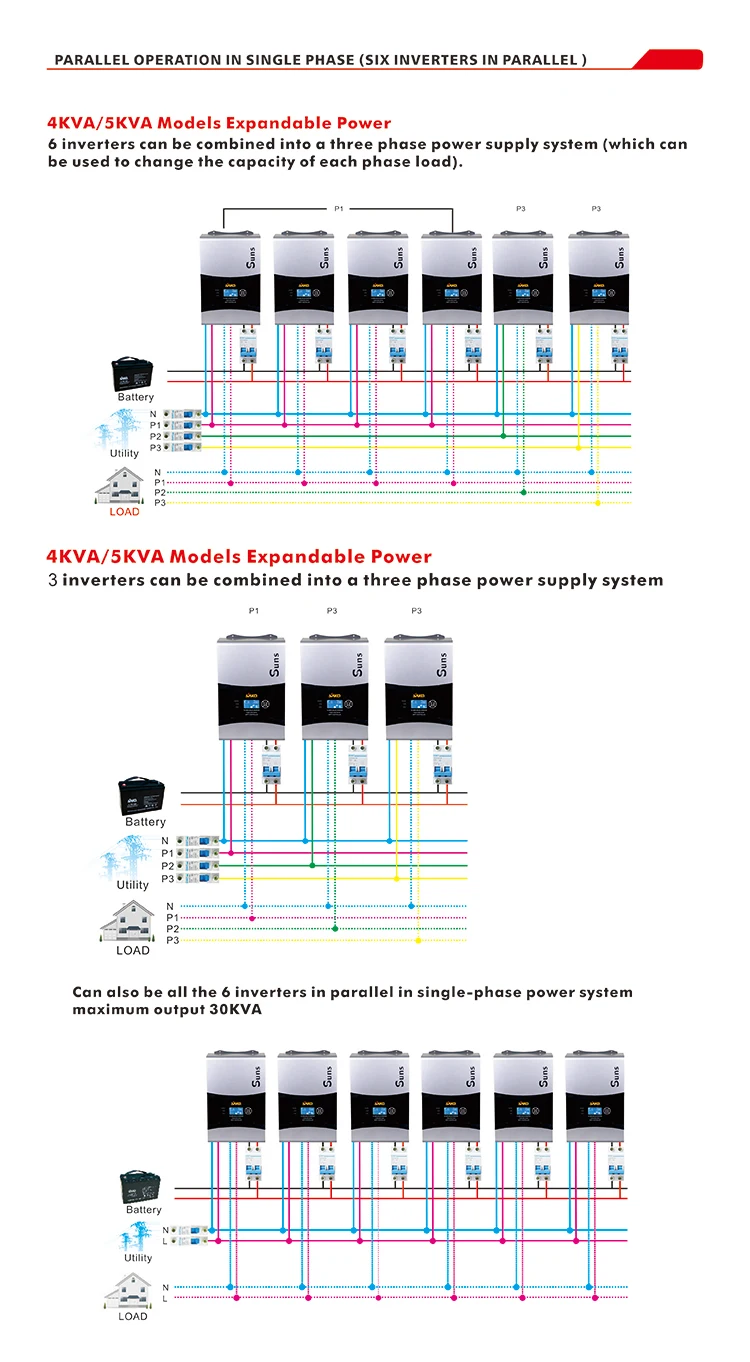

7. Parallel operation with up to 6 units only available for 4KVA/5KVA
8. Auto restart while AC is recovering, auto charge and switch, unattended operation 9. Smart battery charger and management for optimized battery performance
10. Remote control panel is optional
11. High Efficient DC-To-AC Conversion.Minimizing Energy Loss and self power consumption 12. All around protection functions: Overload/short circuit protection/high voltage/low battery voltage/high temerature,etc.

Product Description



ModelSUNSEE-1KSUNSEE-2KSUNSEE-3KSUNSEE-4KSUNSEE-5K
The rated power1000VA/800W2000VA/1600W3000VA/2400W4000VA/3200W5000VA/4000W
INPUT
Voltage230 VAC
Selectable Voltage Range170-280VAC (For Personal Computers), 90-280VAC (For Home Appliances)
Frequnecy Range50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Model)230VAC ± 5%
Surge Power2000VA4000VA6000VA8000VA10000VA
Efficiency(Peak)90%93%
Transfer Time10ms (For Personal Computers), 20ms (For Home Appliances)
Wave formPure sine wave
BATTERY
Battery voltage12VDC24VDC48VDC
Floating Charge Voltage13.5VDC27VDC54VDC
Overcharge Protection16VDC32VDC60VDC
MPPT SOLAR CHARGER & AC CHARGER
Maximum PV Array Power420W1440W3840W
MPPT Range Operation Vol15-33VDC18-145VDC36-145VDC
Maximum PV Array Open Circuit Vol.50VDC145VDC145VDC
Standby Power Consumption15W28W56W
Maxmum Solar Charge Current30A60A80A
Maxmum AC Charge Current10A or 20A60A60A
Maxmum Charge Current50A120A140A
Maxmum Efficiency98%

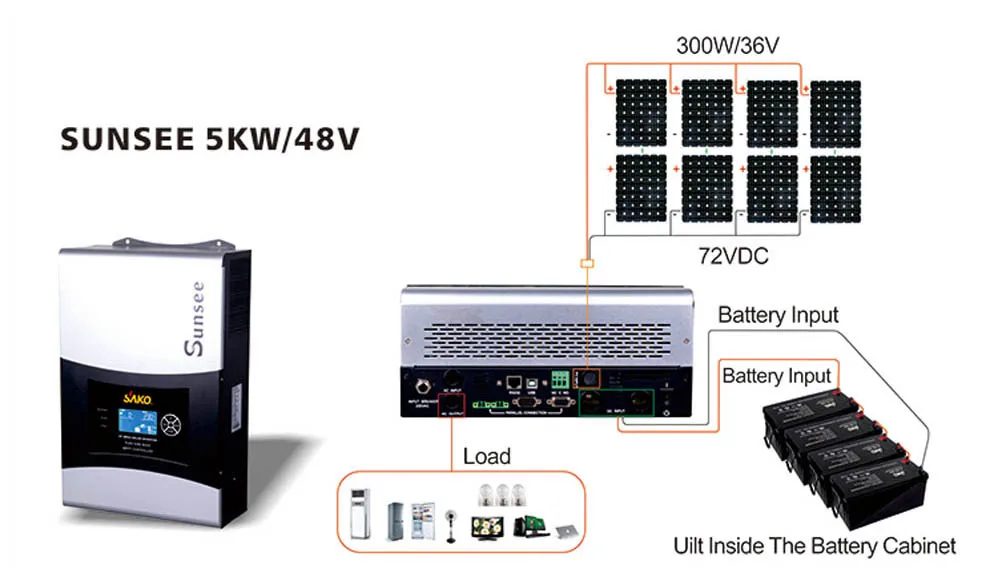

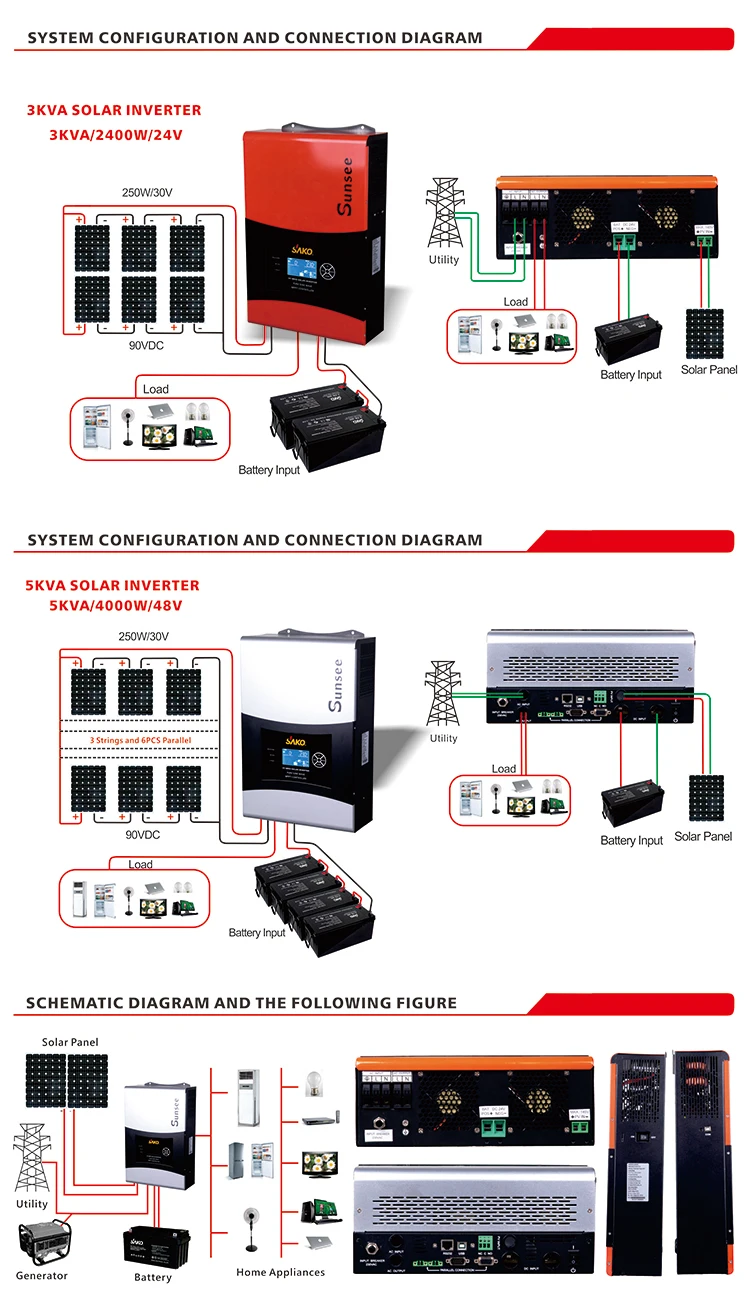

BEST PANEL CONFIGUTATION
Max. generated from solar charger30Amp, 420W60Amp, 1440W80Amp, 3840W
Best Panel configuration200Wp*2pcs (420Wp)300Wp*4pcs *30V(1400Wp)  4pcs in parallel connection300Wp*4pcs *30V(3360Wp) 6 strings, and 2pcs in each string in series connection
PHYSICAL
Dimension, D*W*H(mm)128*272*355543*394*204mm549*394*224mm
Net Weight (kgs)7.58.4kg10.81kg
OPERATING ENVIRONMENT
Humidity5% to 95% Relative Humidity (Non-condensing)
Operation Temperature

0℃-50℃




new products

other Products

Company Information



Certifications



Packaging & Shipping



FAQ



Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.

Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.

Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.

Q4: What is the warranty of inverter?
A4: One year warranty on SAKO-Solar product.

Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
