1000w 2000w 3000w 4000w 5000w 6000w hybrid solar inverter with mppt charge controller solar inverter

  • 5 - 49 Packs
    $520.00
  • 50 - 499 Packs
    $429.00
  • >=500 Packs
    $330.00
Output Power:
4000w
Lead Time:
Quantity(Packs) 1 - 10000 >10000
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SAKO
Model Number:
SKN-SS 4000W 24V
Size:
760X312X385MM
Weight:
41KG
Input Voltage:
24V48V
Output Type:
Multiple
Type:
DC/AC Inverters
Output Voltage:
120V or 230vac
Output Frequency:
50hz60hz
Output Current:
40a
Product name:
Hybrid Solar Inverter
Application:
Solar Power System Home
Output waveform:
Prue Sine Wave
Certificate:
ISO 9001/CE/IEC/TUV
Warranty:
2 Years
Protection:
Short Circuit
Packaging & Delivery
Lead Time :
Quantity(Packs) 1 - 10000 >10000
Est. Time(days) 5 To be negotiated
Video Description

1000w 2000w 3000w 4000w 5000w 6000w hybrid solar inverter with mppt charge controller solar inverter

Main Featurers

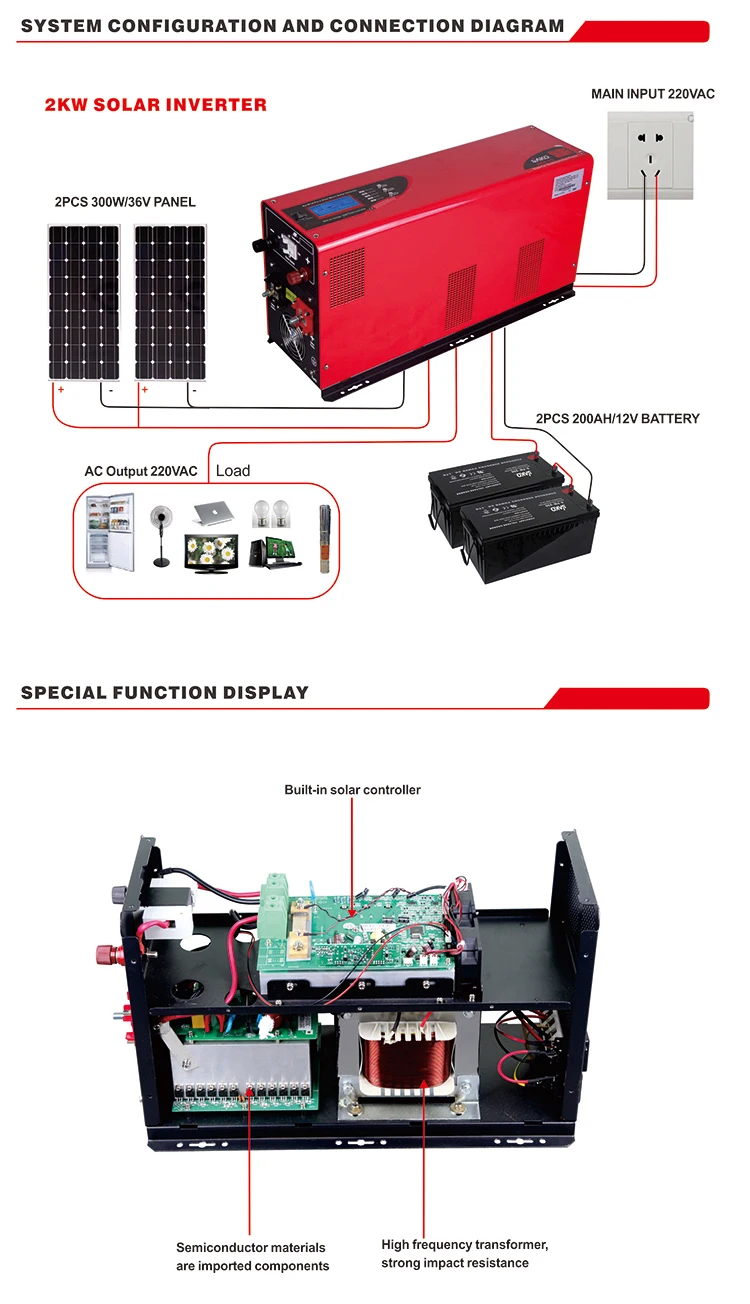

1.Solar charge controller and AC charger built inside, solar/battery/grid power complementary.
2.The charge controller will auto start or stop working according to the sunshine status, the night power consumption < 1W.
3.Pure sine wave, excellent load adaptability, can load different types of heavy load such as air conditioner,refrige and small pumps.
4.Big transfomer built inside, isolated output, 100% real power, durable and safe.
5.User can set up the charge current, voltage and the working mode as needs. 6.Different types of battery selection to get the best charge voltage and mode, good for the battery service life.

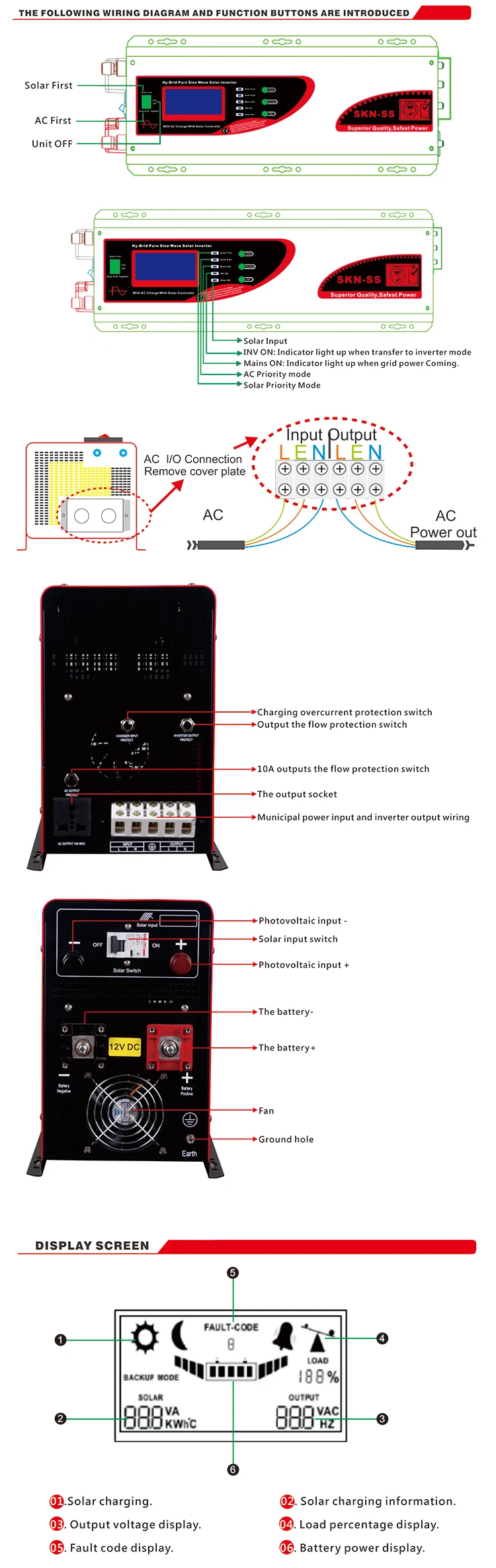

7.Big LCD display plus  buzzer alarms Design, show every information crealy. User can know the working status at glance.
8.Intelligent battery management, 3 stages of battery charging and all around protection functions. Exctent battery life
9.Auto switch and auto charging, achives unattendtion operation. 10.Automatic charge while AC recovery(off model charging)
11.All around protection: Over load,short circuit protection,Over charge,discharge protection,Low battery and high protection. 12.Temperature controlled fan, full automatic and silent operation.
13.Compatible with generator, both generator and grid power can be extra backup

Product Description

 solar energy system 1.jpgsolar energy system 2.jpg

MODELSKN-SS 1KWSKN-SS  2KWSKN-SS  3KWSKN-SS  4KWSKN-SS 5KWSKN-SS 6KW
SPECIFICATION
DC INPUT
Input Voltage(Vdc)12V/24V24V/48V
Min DC start voltage(Vdc)10V/20V20V/40V
AC Bypass
Nominal Input Voltage110V or 230Vac(waveform:Sine or generator)230Vac(waveform:Sine or generator)
Input AC Range(Vac)90Vac±4%-135Vac±4% or 184Vac±4%-253Vac±4%184Vac±4%-253Vac±4%
Frequency Range(HZ)57Hz or 60Hz(47Hz -53Hz for 50Hz)-----{57Hz -63Hz for 60Hz}
Input Frequency(Hz)50Hz/ 60Hz  (Auto detection)
Bypass Output Voltage(Vac)same as input voltage
Bypass Output Frequency(Hz)same as input frequency
Pass through without BatteryYes
Max Bypass Overload Current10A30A40A
AC  Efficiency> 95%
Transfer Time(ms)20ms (typical)
Solar controller
Solar controller30A50A50A50A60A80A
AC CHARGER
Charge mode Input Voltage Range95~127Vac or 196~243Vac196~243Vac
Automatic Charge modeThree stage charge mode:Boost CC (constant current stage) → Boost CV (constant voltage stage) → Float (constant voltage stage)
Nominal Charge VoltageAccording to the battery type setup
Charge Current(A)Max.70A
Charge boost voltage(v)According to the battery type setup( 12V BAT:14-15.5v   24V BAT:   28-31V   48V BAT:56-62V)
Charge Floating Voltage(V)According to the battery type setup (12V BAT: 13.3-13.7,  24v BAT: 26.6-27.6,  48V BAT:53.2-55.2V)
Over Charge ProtectionBat. V ≥15.7Vdc, beeps 0.5s every 1s & fault after 60s (15.7 for 12v,  31.4V for 24V,  62.8V for 48V)
Charger Short Circuit ProtectionCircuit breaker
(INVERTER)
Capacity(VA)100020003000400050006000
Output Power(W)100020003000400050006000
Power Factor(PF)1
Output Voltage120VAC or 230VAC  (Sine wave)230VAC  (Sine wave)
Output Frequency50/60 ± 0.3Hz(auto tracking main first power connection)
Wave  pure sine wave
Inversion Efficiency>88%
Over load capacity(110%<load<125%) ±10%: Fault (shutdown output) after 15 minutes;
(125%<load<150%) ±10%: Fault (shutdown output) after 60s;
Load>150% ±10%:  Fault (shutdown output) after 20s
Low Battery Alarm10.5Vdc ± 0.3Vdc for 12V battery,  21.0Vdc ± 0.6Vdc for 24V battery,  42.0Vdc ± 1.2Vdc for 48V battery
AMBIENT
Noise(dB)60dB max.
Temperature0°C to 40°C
Humidity5% to 95%
Sea Level(m)≤1500
DIMENSION
Product size  L×W×H(mm)L488mm*W219mm*H304mm L608mm*W219mm*H304mm
Packing sizeL640mm*W312mm*H419mmL760mm*W312mm*H419mm

solar energy system 4.jpg



new products

other Products

Company Information

_03_04_05


Certifications

_06

Packaging & Shipping


FAQ



Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.

Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.

Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.

Q4: What is the warranty of inverter?
A4: One year warranty on SAKO-Solar product.

Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
