20A 30A 50A 60A MPPT Solar Charge Controller, 12V 24V 48V auto recognition, top quality

  • 10 - 49 Units
    $135.00
  • 50 - 99 Units
    $125.00
  • >=100 Units
    $115.00
Rated Voltage:
12V 24V 48V
Maximum Current:
60A
Lead Time:
Quantity(Units) 1 - 100 >100
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SAKO
Model Number:
SC-M
Application:
Charger Controller, Solar Working Station, Lighting Controller, Solar System Controller
Type:
MPPT
Work Time (h):
24 Hours
Max PV Voltage:
165Vdc
Max PV Power:
3600W
Supply Ability
Supply Ability:
50000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard international paper box packing.
Port
Shenzhen

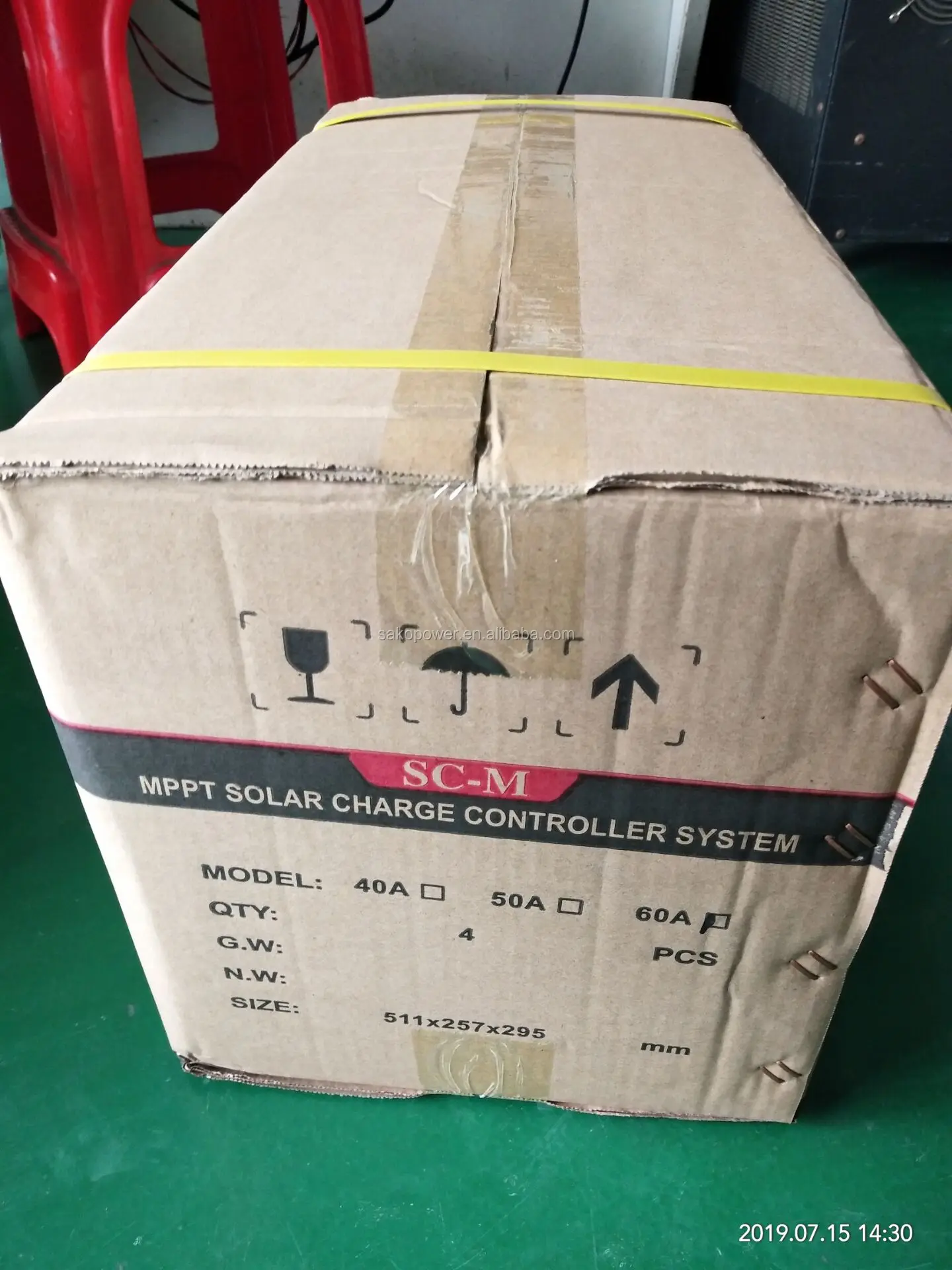

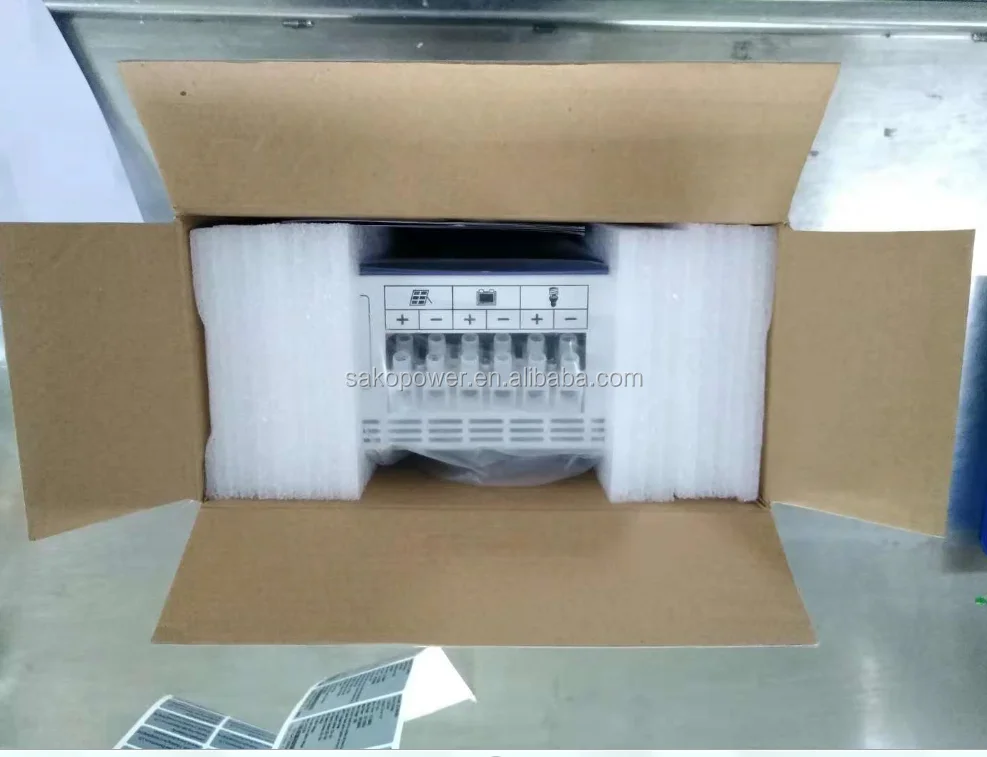

Picture Example:
package-img
package-img
Lead Time :
Quantity(Units) 1 - 100 >100
Est. Time(days) 7 To be negotiated

Main Features of SC-M series MPPT solar charge controller

1.Automatic Identification System Voltage,12V 24V 48V auto recognition and ataptive.

2. MPPT tracking way, max charging efficieny up to 99%, 15%-20% higher than PWM mode In charging efficiency,Save 20% Solar Panel

3. Wide PV input range,and the max PV input votlage reaches to 165Vdc.

3.Humanized LCD displaying and double button operation of man-machine interface.

4.Completed technical data for setup and modify.

5. Intelligent design, can be upgraded online

6.Reliable over voltage,short circuit,over load,overcharge,over-discharge protection

7. High degree power Save function, nght consumption <1W

8.Roundly reverse connected protection.

9.Temperature Compensation Function

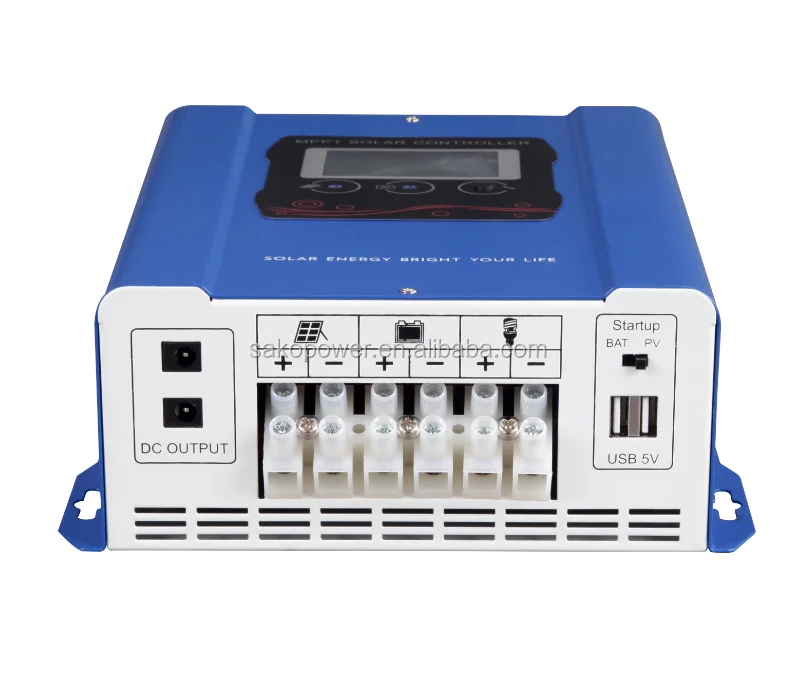

Product Show



1713_02





1713_04

MODELSC-M-20ASC-M-30ASC-M-40ASC-M-50ASC-M-60ASC-M-80ASC-M-100ASC-M-120A
SPECIFICATION
                                                                      P.V. Input Features
Input P.V. Range(Vdc)≤165VDC
Solar Charge Current(A)20A Max.30A Max.40A Max.50A Max.60A Max.80A Max.80A Max.80A Max.
                                                                      Solar Charging Features
Normal Battery Voltage(Vdc)12/24/48VDC
Battery Type ChooseGel/Sealed/other(User-defined)
Fast Charge Voltage(Vdc)14.0V ; X2/24V ; X4/48V  other(User-defined)
Folat Charge Voltage(Vdc)13.8V ; X2/24V ; X4/48V  other(User-defined)
Overcharge Alarm Voltage(Vdc)15.0V ; X2/24V ; X4/48V  other(User-defined)
Overcharge Protection Voltage(Vdc)15.0V ; X2/24V ; X4/48V  other(User-defined)
Overcharge Recovery Voltage(Vdc)13.6V ; X2/24V ; X4/48V  other(User-defined)
                                                                      DC Output Features
DC Output Current(A)20A Max.30A Max.40A Max.50A Max.60A Max.80A Max.100A Max.120A Max.
Overdischarge Alarm Voltage(Vdc)11.0V ; X2/24V ; X4/48V  other(User-defined)
Overdischarge Protection Voltage(Vdc)10.5V ; X2/24V ; X4/48V  other(User-defined)
Overdischarge Recovery Voltage(Vdc)14.0V ; X2/24V ; X4/48V  other(User-defined)
                                                                PROTECTION
ProtectionOvercharge protection,Overdischarge protection,Solar reverse polarity protection,Overtemperature protection
                                                                Display Features
Display methodLED+LCD
Display subtancePV status,Battery status,DC Output status,fault status
                                                         AMBIENT
Noise(dB)< 55dB (1 meter)
working Temperature -20℃~50℃
Humidity0~95% ( no condensation)
Sea Level(m)≤1500
                                                            DIMENSION
L×W×H (products size) mmL205*W167*H93.5mmL260*W223*H93.5mmL410*W375*H140mm
L×W×H (package size) mmL640*W565*H305mmL640*W565*H305mmL429*W398*H151mm
Weight(NW Kg)2.1Kg3.0Kg6.5KGS
QTY PER CTN8PCS/CTN4PCS/CTN4PC/CTN
Packge Weight(GW Kg)21Kg15Kg7.5kgs







More Product

1713_06

1713_08

About Us

1713_101713_121713_141713_16

Packaging & Shipping

1713_18


FAQ

Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.

Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.

Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.

Q4: What is the warranty of inverter?
A4: One year warranty on SAKO Solar product.

Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.



Q6: Why shoul I choose SAKO?
A6: Professional--Factory for power and solar products since 1993.
       Certification--CE, ISO, TUV approved.
       Quality Control-- 37 production process,7 steps quality check.

       Service--24 hours after-service consultancy
