TUV ETL CE All black mono silicon solar panel 300w 310w 320w 330w panel solar price solarpanel

  • 1 - 499 Watts
    $0.40
  • 500 - 999 Watts
    $0.29
  • >=1000 Watts
    $0.19
Material:
Monocrystalline Silicon
Max. Power:
300w
Number of Cells:
72
Lead Time:
Quantity(Watts) 1 - 10000 >10000
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1000 Watts)
Customized packaging (Min. Order: 1000 Watts)

More

Graphic customization (Min. Order: 1000 Watts) Less
Samples:
$0.30 /Watts | 1 Watts (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SAKO
Model Number:
Mono Solar Panel 300w
Type:
Standard Solar Panel
Size:
1960x990x40mm
Product name:
Mono Solar Panel 300w
The Rated Peak power (Pmax):
300W
The Rated voltage(Vmp):
36V
The Rated current (Imp):
8.34A
Open circuit voltage(Voc):
44.32V
Short-circuit current (Isc):
9.12A
Module efficiency:
18.30%
Weight:
24.0kg
Maximum system voltage:
1000 V
Cell type(Mono/poly):
Mono Crystalline Solar Panel
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard international paper box packing.
Port
FOB Shenzhen
Lead Time :
Quantity(Watts) 1 - 10000 >10000
Est. Time(days) 7 To be negotiated
Video Description

TUV ETL CE All black mono silicon solar panel 300w 310w 320w 330w panel solar price solarpanel

Best Price & High Quality 5W 10W 15W 20W 30W 40W 45W 50w 80w 100w 120w 150w 180w 200w 250W 300W 310W Poly Mono Solar Panels From Shenzhen & Dongguan Factory.
we are the solar panel manufacturer

We are the solar panel system manufacturer

We have over 20 years experiences in the solar field,we are professional!

We own 4 factories which product solar panel,led,solar power system,cost effective!

we can produce customized Solar system according to different customer's requirement, Our Company Annual Capacity is more than 100000 sets.

More product information,welcome to contact us.

1.Bypass diode minimizes the power drop by shade.
2.The conversion efficiency of solar panel is about 18%.

3.Adapt the severest enviromental conditions

4. Waterproof. Perfect for grid applications and off-grid applications.

5.Our solar panel enjoys a good reputation in Southeast Asia, Middle East, Africa,and Australia, such as India,Janpan,Pakistan,Nigeria,Dubai,Panama and so on.

Operating Temperature:-40°C to +80°C

Standard Test Conditions: Irradiance of 1000W per sq.m., Am=1.5 and 25+/-2°C cell temperature

Product Description






Module
Mono290M-60
Mono300M-60
Mono310M-60
Mono320M-60
Mono330M-60
Rated Maximum Power at STC
290
300
310
320
330
Open Circuit Voltage(Voc/V)
39.46
39.82
40.18
40.9
41.3
Maximum Power Voltage(Vmp/V)
32.07
32.51
32.95
33.4
33.8
Short Circuit Current(Isc/A)
9.56
9.84
10.08
10.15
10.34
Maximum Power Current(Imp/A)
9.11
9.23
9.41
9.59
9.77
Module Efficiency(%)
17.74
18.44
19.05
19.66
20.28
Power Tolerance
-0~+5w
Standard Test Condition(STC)
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5
WarrantyWithin 10 year, the output power is not less than 90.20% of the minium peak power shown in STC list.                                                Within 25 years, the output power is not less than 78.60% of the minium peak power shown in STC list.
Electrical performance parameter(STC) The Rated Peak power (Pmax)310W
The Rated voltage(Vmp)36V
The Rated current (Imp)8.11A
Open circuit voltage(Voc)45V
Short-circuit current (Isc)8.77A
Module  efficiency  18.00%
Tolerance (%)0/+5
Standard test conditionsStandard test conditions(STC):Solar flux1000W/m2,Atmospheric parameters1.5,The component temperature25℃./ Am1.5   25℃  1000W/
Temperature characteristicTemperature Range-40~85 °C
Peak power Temperature area(Voc)-0.42 %/°C
Open voltage Temperature area Voc(Voc)-0.32 %/°C
Short-circuit current  Temperature  Isc(Isc)0.05 %/°C
System integration parametersMaximum system voltage1000 V
Maximum reverse current 15 A
Fuse current rating15 A
Physical parametersSolar module size(mm)1950*990*45 mm (Length*Width*Thickness)
Weight24.5 kg
Cell type(Mono/poly)Mono Crystalline Solar Panel
 Cell size156×156 mm
Cell QTY72

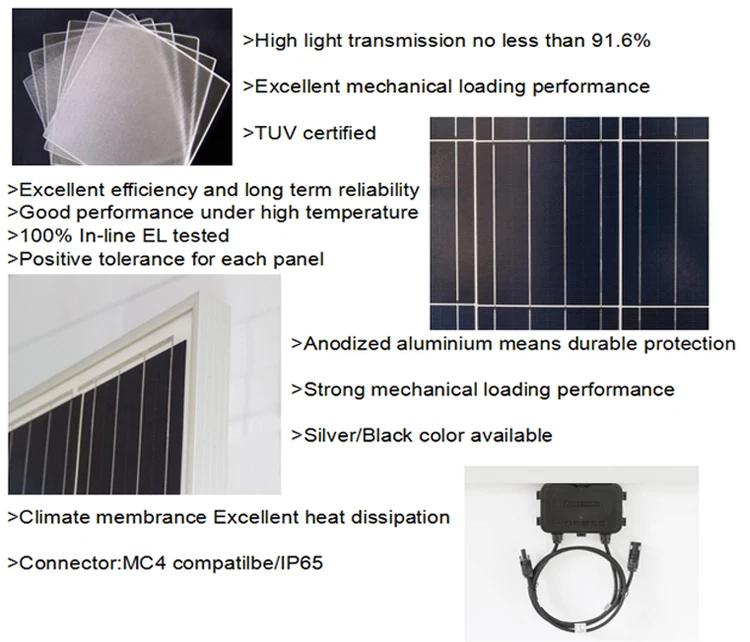

Glass Typegolden shield tempered low iron solar glass
Thickness of glass4 mm
Frame 50mm  Aluminum frame
Junction boxInternational Standard junction box,IP 65
Connector typeMC4
PV Cable 4 mm2 * 900 mm cable with MC4 connector
/Cetificates and standardsCE(Already)/TUV(planning),                                                                                      EN 61215:2005
EN 61730-1:2007+A1:2013+A11:2014
EN 61730-2: 2007+ A1:2015
IEC 61215:2005
IEC 61730-1:2007+A1:2013+A2:2014
IEC 61730-2: 2007+ A1:2015
new products

other Products

Company Information



Certifications



Packaging & Shipping



FAQ


Q1.May I visit your factory?

A1.Yes,welcome to visit our factory.Please inform us,we will show you the way to our factory

Q2.Can I be agent in our country?

A2Yes,please contact our sales staff for the details.

Q3.What is the delivery time of solar panel

A3Sample in 7 days,bulk order in 30 days.

Q4.Could you print our logo on product and package

A4.Yes,we can do that.
